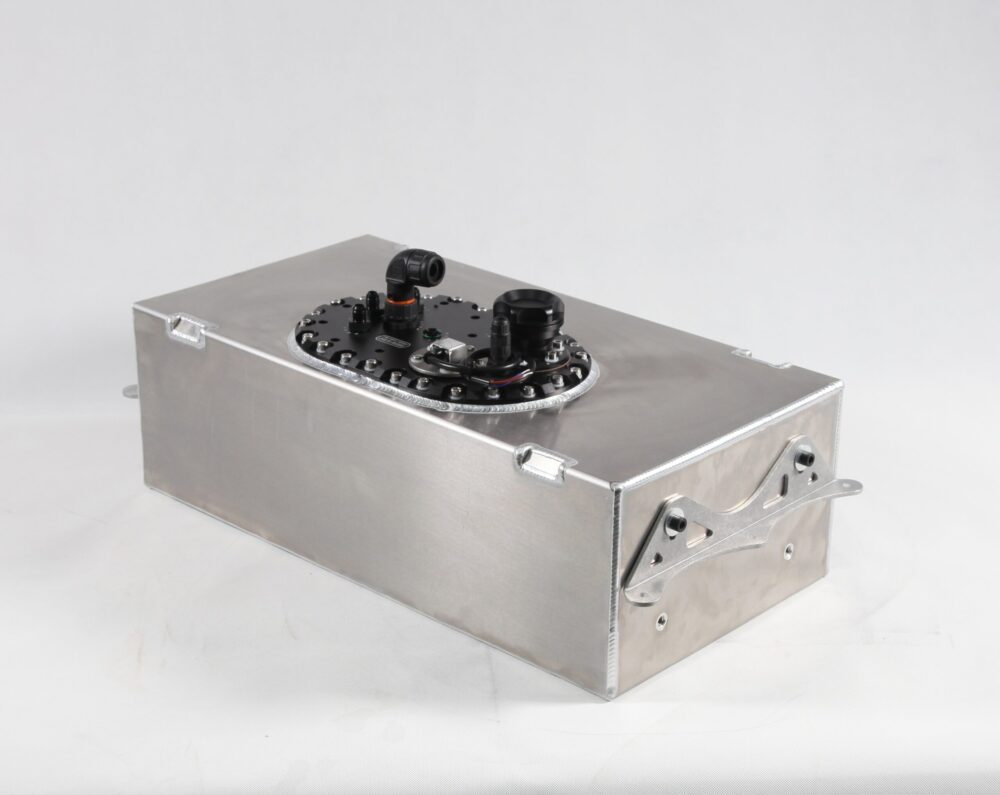

NZKW Alloy Fuel Cells Spec V 30/60L MSNZ/LVV Complied

Design and manufactured to Comply with New Zealand LVVTA 10.1 and MSNZ Schedule A 4.12(3).

Specifications:

Fuel Cradle:
Weldon on flange is supplied when you buy the cradle along.
Billet T6061 Construction
Built in Surge tank 2.8L
Fuel Pumps Capacity: 3 x in tank pumps, 1 x intake lift pump
Outlet: 6AN ORB X 3
Return: 8AN ORB X 1
Vent: 6AN x 1
Filler Cap: 50mm
Fuel level sender(0-190 Ohms) is included.

Fell Cell Dimension 605L*315W*195H
Capacity: 8 Gallon / 30L

Fell Cell Dimension 602L*417W*242H
Capacity: 16 Gallon / 60LFull 3mm T5052 Marine grade alloy
Foam: Foam: Pre-loaded Yellow baffle foam for pump gas
